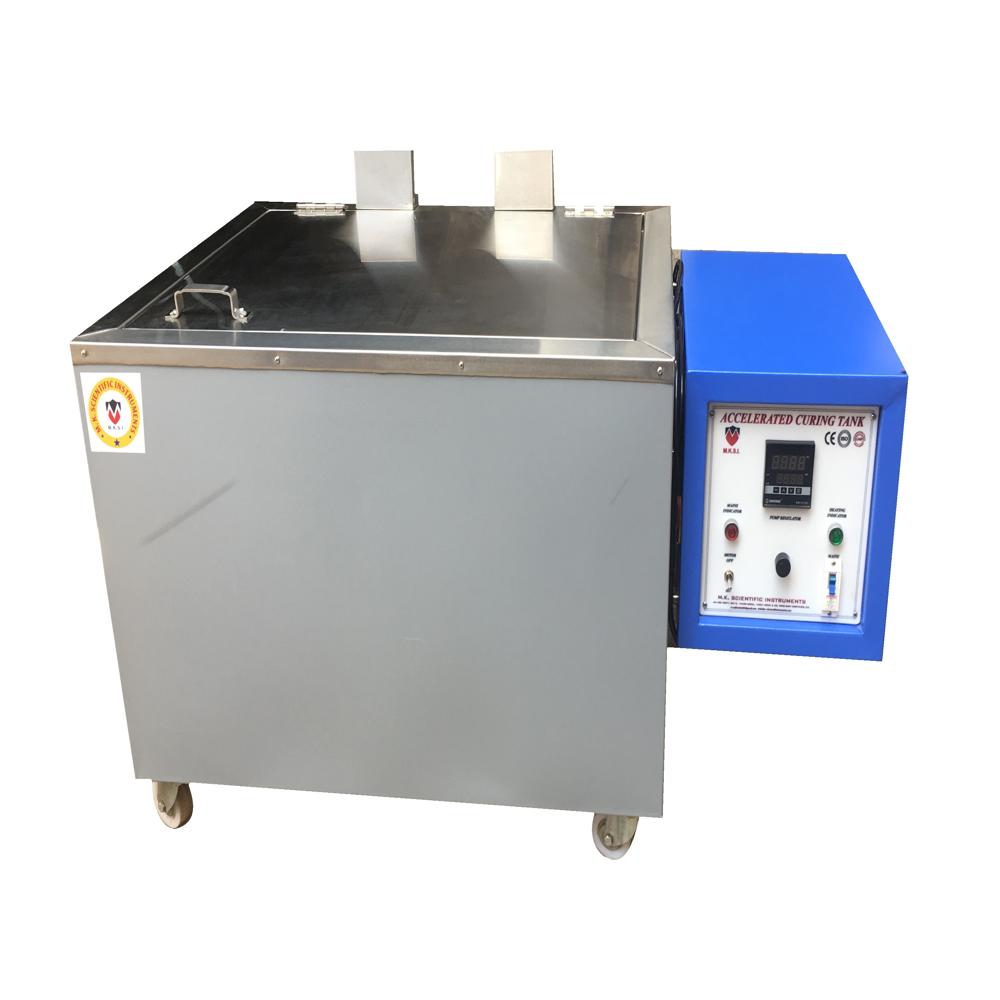

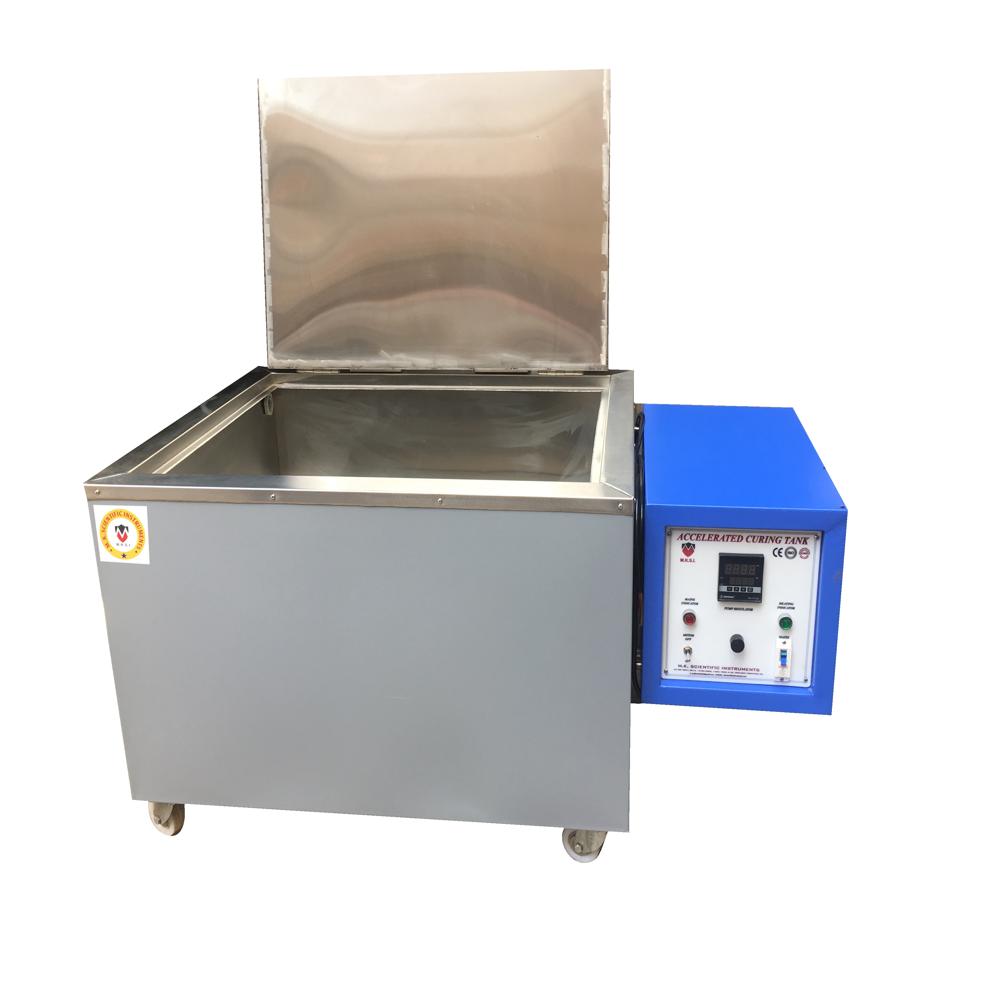

ACCELERATED CURING TANK

ACCELERATED CURING TANK Specification

Power Supply
230V AC, 50 Hz single phase

Operating Voltage
230V AC

Features
Mild steel with powder coated body, digital controller, built-in heater, water level controller, stainless steel inner tank, insulated body, caster wheels

Display Type
Digital display

Frequency
50 Hz

Accuracy
1C (temperature control)

Humidity
Ambient

Equipment Type
Accelerated Curing Tank

Specimen Size
150 mm x 150 mm x 150 mm cubes or 70.6 mm cubes

Resolution
0.1C (temperature display)

Number of Specimens
6 or 12 (depends on tank capacity/model)

Mounting Type
Floor mounted, with wheels

Response Time
Instantaneous heating response

Temperature
Accelerated curing temperature 100C 2C

Max Height
Approx. 700 mm (varies by model)

Automation Grade
Semi-automatic

Application
Concrete cube testing, cement testing laboratories

Usage
For accelerated curing of concrete and cement specimens

Capacity
6, 12 or 24 cubes (varies by model)

Machine Weight
Approx. 60-100 kg (varies by model)

Control Mode
Digital temperature controller

Safety Feature
Automatic low water level cut-off

Timer Range
Up to 999 minutes or 24 hours (presettable)

Inner Tank Material
Stainless steel

Tank Dimensions
Approx. 700 mm x 600 mm x 600 mm (varies by model)

Lid Type
Stainless steel with handled cover

Caster Wheels
Heavy duty for easy movement

Outer Body Material
Powder coated mild steel

Water Circulation
Inbuilt automatic circulation

Heater Capacity
Approx. 2 kW

About ACCELERATED CURING TANK

Accelerated Curing Tank Specifications

Parameter	Specification
Tank Material	Stainless steel (SS 304) or corrosion-resistant steel
Construction	Double-walled with insulation
Heating System	Electric immersion heaters
Temperature Range	Ambient to 100C
Temperature Accuracy	1C
Operating Temperature	95C to 100C (typically 95 2C as per IS 9013)
Temperature Control	Digital PID temperature controller
Water Circulation	Continuous circulation for uniform temperature
Tank Capacity	As required (commonly 6, 12, 24, or 36 cube specimens of 150 mm size)
Inner Chamber	Suitable for complete immersion of specimens
Lid	Insulated stainless steel lid
Safety Features	Over-temperature protection, low-water level protection, thermostat
Power Supply	230 V AC, 50 Hz, Single Phase (or 415 V for larger models)
Display	Digital temperature display
Drain Valve	Brass/Stainless steel drain outlet
Insulation	Glass wool or ceramic insulation (typically 50 mm thick)

Built for Laboratory Precision

Designed for the demands of professional concrete and cement testing laboratories, this curing tank delivers accurate temperature control and stable curing conditions. Its stainless steel tank resists corrosion from regular water exposure, while integrated insulation and a robust, powder-coated outer shell provide safety and durability during intensive daily operations.

Streamlined Operation and Safety

Operating with digital controls, users can easily set curing times and temperatures to suit specific test requirements. The automatic low water level cut-off feature protects internal components and ensures safe operation. Instant temperature response, combined with programmable digital timers, simplifies workflows and improves the reliability of test results.

Enhanced Mobility and Versatile Application

Equipped with heavy-duty caster wheels and a sturdy floor-mounted build, the tank is easy to relocate within the laboratory. It caters to multiple specimen sizes and varying batch capacities, supporting rigorous testing procedures for construction and cement industries.

FAQ's of ACCELERATED CURING TANK:

Q: How does the Accelerated Curing Tank benefit concrete and cement testing laboratories?

A: The tank ensures precise temperature control and even water circulation for accelerated curing, leading to reliable and repeatable test results. Rapid heating and programmable settings streamline laboratory workflows and comply with stringent testing standards.

Q: What safety features are included in this curing tank?

A: The curing tank is equipped with an automatic low water level cut-off, which immediately stops operation if insufficient water is detected. This prevents damage to the heater and maintains user safety during extended use.

Q: How many concrete specimens can the tank accommodate at once?

A: Depending on the model, the tank can accommodate either 6, 12, or 24 concrete cubes, supporting both 150 mm x 150 mm x 150 mm and 70.6 mm cube sizes for flexibility in testing configurations.

Q: What is the process for operating the Accelerated Curing Tank?

A: Place prepared specimens in the stainless steel tank, set the desired temperature and timer using the digital controller, and the inbuilt heater rapidly raises the water to the set curing temperature. Automatic circulation ensures even heat distribution, and the system maintains preset parameters throughout the curing period.

Q: When should the digital timer be set and adjusted?

A: The timer should be preset before starting the curing process. It can be set up to 999 minutes or 24 hours, based on the specific requirements of your test protocol or standard.

Q: Where is the best location to install the curing tank in a lab?

A: The tank should be placed on a stable floor surface near a suitable power supply (230V AC, 50 Hz single phase). Its heavy-duty caster wheels allow for easy movement, enabling convenient positioning within your laboratory workspace.
