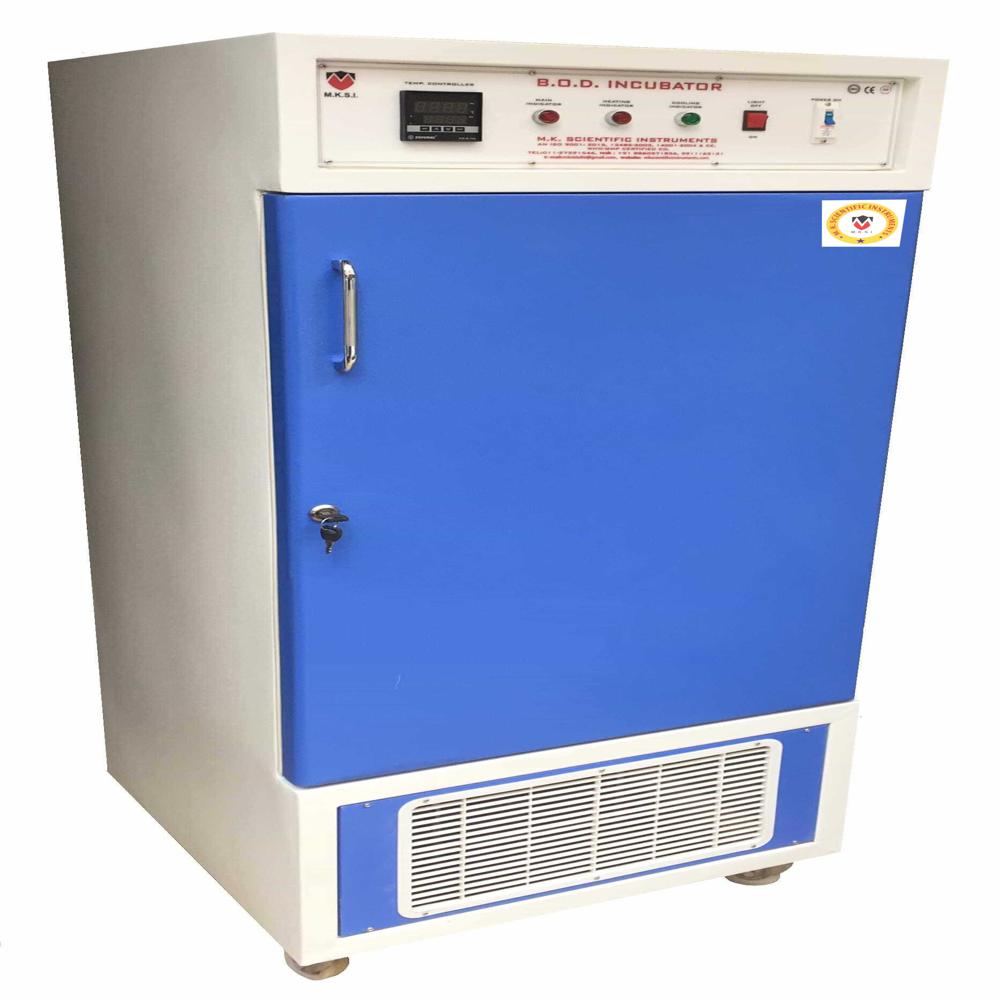

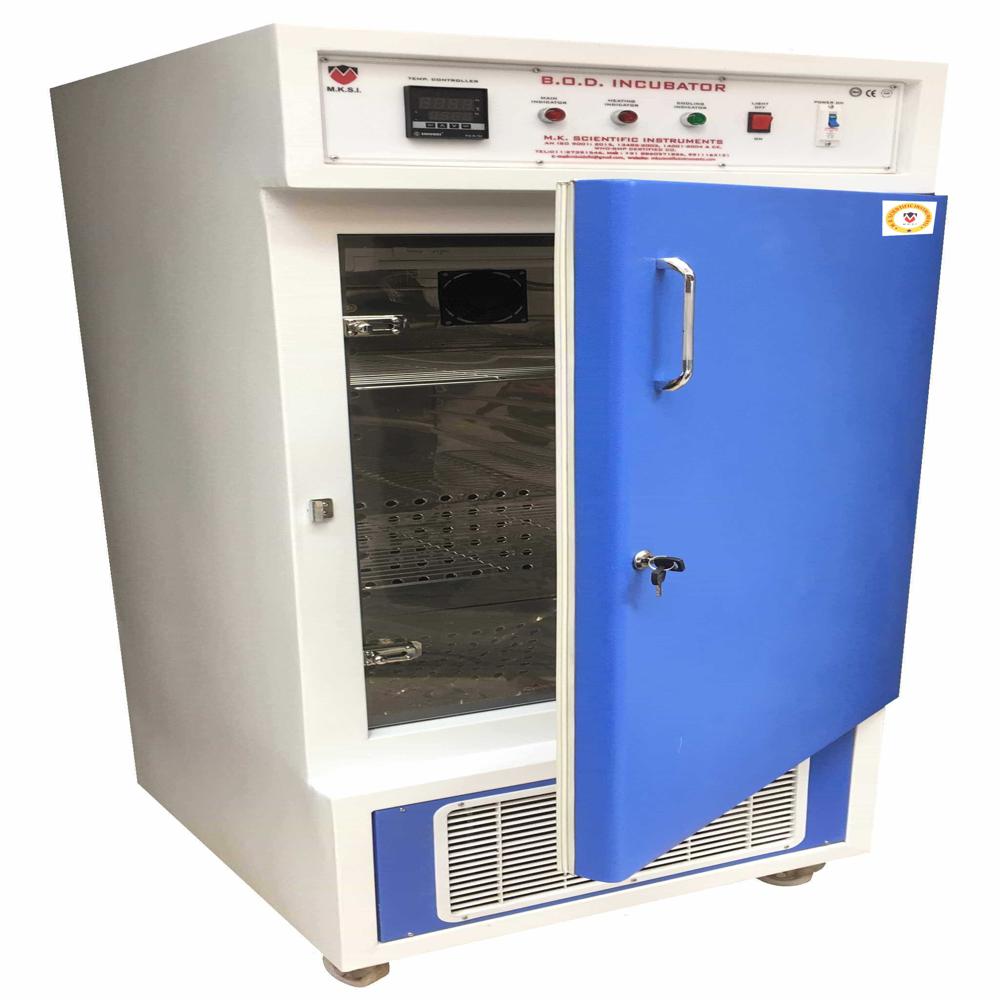

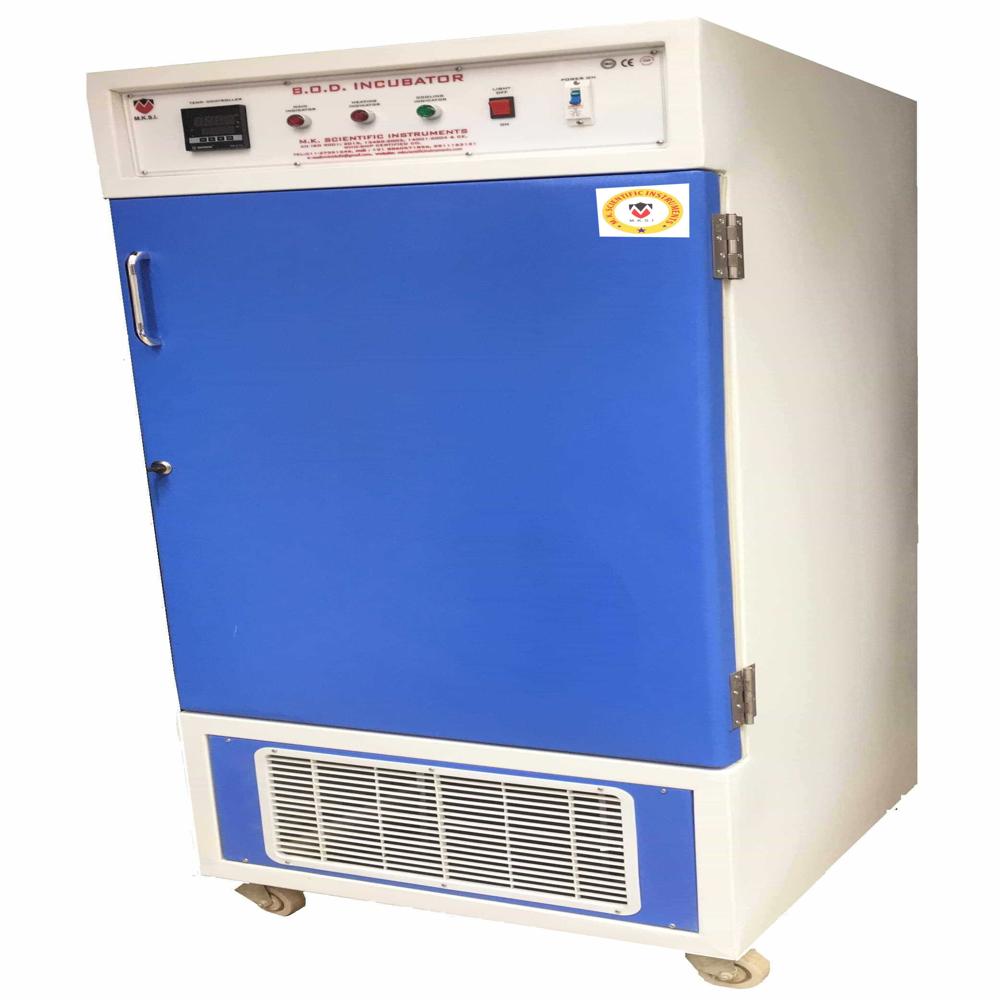

BOD INCUBATOR

BOD INCUBATOR Specification

Type
Vertical BOD Incubator

Chamber Size
18 x 18 x 18 inches (custom sizes also available)

Chamber Thickness
1.5 mm (SS Inner Chamber)

Outer Size
24 x 24 x 36 inches (Standard, other sizes available)

Door Type
Single Solid Door with Lock and Key

Design Pressure
Atmospheric

Working Pressure
Atmospheric

Design Temperature
Up to 60C

Heat Uniform
Uniform Air Circulation through Forced Air Blower

Insulation
High-grade Glass Wool insulation between walls

Net Weight
Approximately 110 kg

Recording Parameters
Digital Display for Temperature

Working Temperature
5C to 60C

Temperature Scope
5C to 60C ( 0.5C)

Power Consumption
Approx 350-500 Watts

Control System
Microprocessor Based PID Controller

Shelves
Removable, Adjustable Stainless Steel Shelves

Air Circulation
Motorized Air Circulation Fan for Uniform Temperature

Safety Features
Over temperature cut-off, In-built fuse

Lighting
Interior Chamber Lamp with ON/OFF switch

Caster Wheels
Yes, for easy mobility

Cooling System
CFC free Cooling System

Door Gasket
High-grade Silicone Rubber for air tight sealing

Power Supply
220 Volts AC, 50 Hz, Single Phase

Outer Chamber Material
CRCA Steel with powder coating

Display
LED Digital Display

Temperature Sensor
PT-100 Sensor

Alarm System
Audio Visual Alarm for Temperature Deviation

Inner Chamber Material
SS-304 Stainless Steel

Humidity Control
Optional, on request

Construction
Double walled, Outer: CRCA Steel, Inner: Stainless Steel 304

Refrigeration
Hermetically sealed Compressor

Voltage Stabilizer
Recommended accessory

Number of Shelves
3 standard, Adjustable position

About BOD INCUBATOR

Introducing the top-rated, exclusive BOD Incubator, a scarce gem for high-precision laboratory applications. This commanding unit boasts a double-walled construction with a robust CRCA steel exterior and an illustrious SS-304 stainless steel inner chamber. Towering in reliability, it features a microprocessor-based PID controller, adjustable stainless steel shelves, and a PT-100 temperature sensor for exacting control. Its hermetically sealed compressor, CFC-free cooling, and secure locking system ensure unmatched safety and efficiency. An audio-visual alarm and uniform air circulation underscore its premier status. Power up excellence with this advanced vertical BOD Incubator.

Precision BOD Incubator Applications and User Base

The BOD Incubator is widely used by research institutions, pharmaceutical companies, and environmental laboratories for incubation and storage applications. Its adjustable, removable shelves and interior chamber lamp increase user versatility, making it ideal for cultivating microorganisms or storing biological samples. The commanding air circulation system ensures even temperature distribution, while the illustrious silicone rubber door gasket secures airtight integrity. Its applications are well-suited for water testing, plant growth experiments, and biochemical oxygen demand evaluation.

Supply, Payment Terms, and Sample Availability Explained

Our top-rated BOD Incubator is supplied at an impressive rate, with dispatch timelines tailored to your requirements and based on current stock outlays. Payment terms are convenient, accommodating a variety of transactions for both bulk and bespoke orders. If you need to verify the product quality or match precise specifications, samples are available upon request. Our efficient supply chain ensures that each incubator reaches your facility promptly and in immaculate condition, upholding our reputation for excellence.

FAQ's of BOD INCUBATOR:

Q: How is temperature regulation managed in this BOD Incubator?

A: The incubator features a microprocessor-based PID controller paired with a PT-100 sensor, providing precise and stable temperature control from 5C to 60C, with an LED digital display for monitoring.

Q: What materials are used in the construction of the incubator chambers?

A: The inner chamber is crafted from SS-304 stainless steel for superior corrosion resistance, while the outer body is made of CRCA steel and enhanced by a durable powder-coated finish.

Q: When is it necessary to request the optional humidity control function?

A: Optional humidity control is recommended for applications that require strict humidity regulation, such as certain microbiological or plant growth studies; it can be included upon request.

Q: Where can the BOD Incubator be installed for best performance?

A: Install the incubator in a temperature-controlled laboratory environment on level flooring, ideally with a voltage stabilizer and away from direct sunlight or heat sources to ensure optimal operation.

Q: What safety features are integrated into this incubator?

A: Safety is prioritized with features like an over temperature cut-off, in-built fuse, and an audio-visual alarm system that immediately alerts users to temperature deviations.

Q: How does the air circulation system benefit sample uniformity?

A: A motorized air circulation fan ensures commanding uniform temperature within the chamber, providing consistent environment conditions crucial for reliable experimental results.
