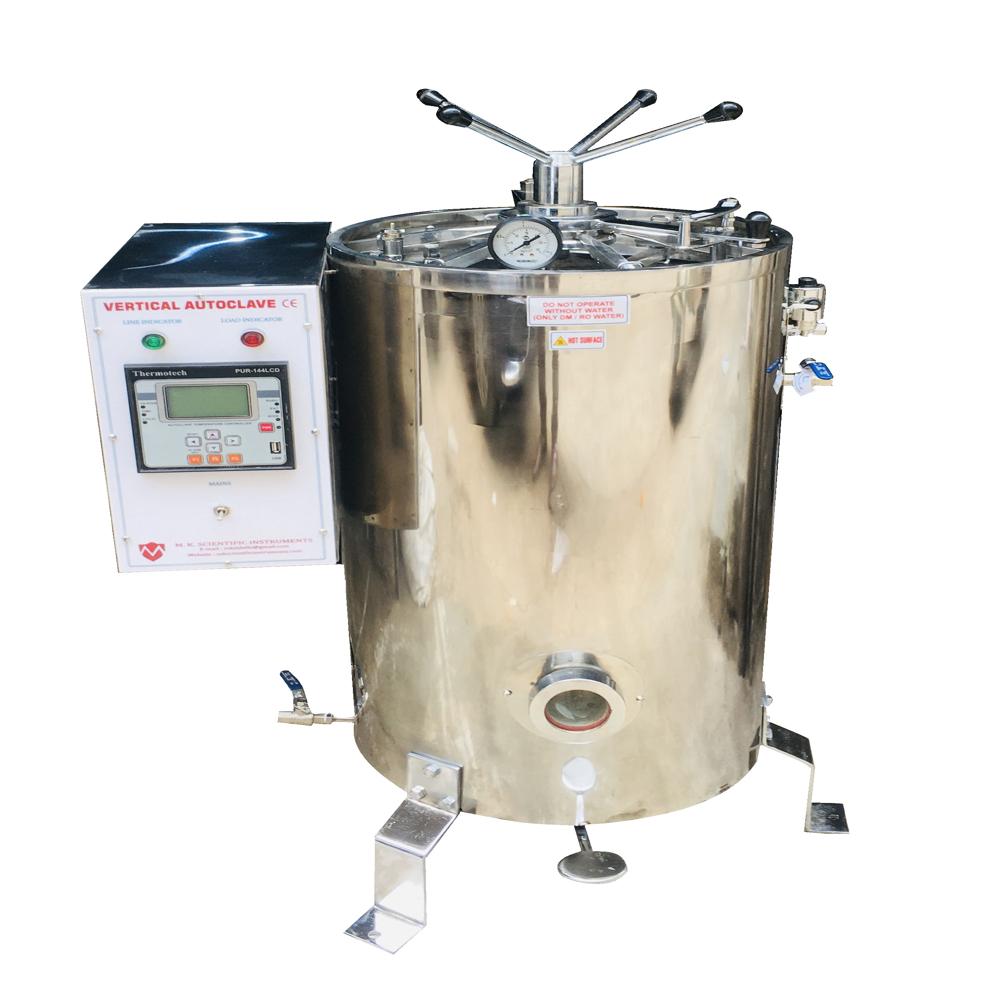

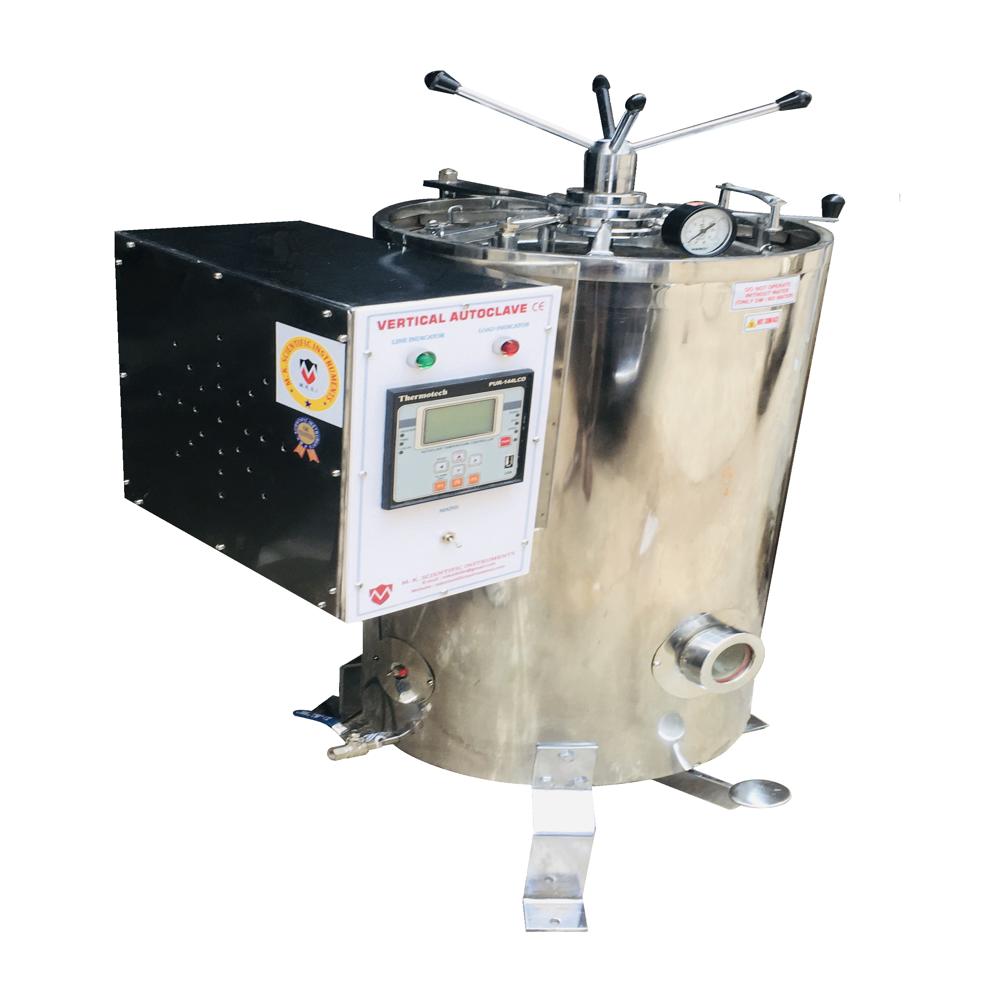

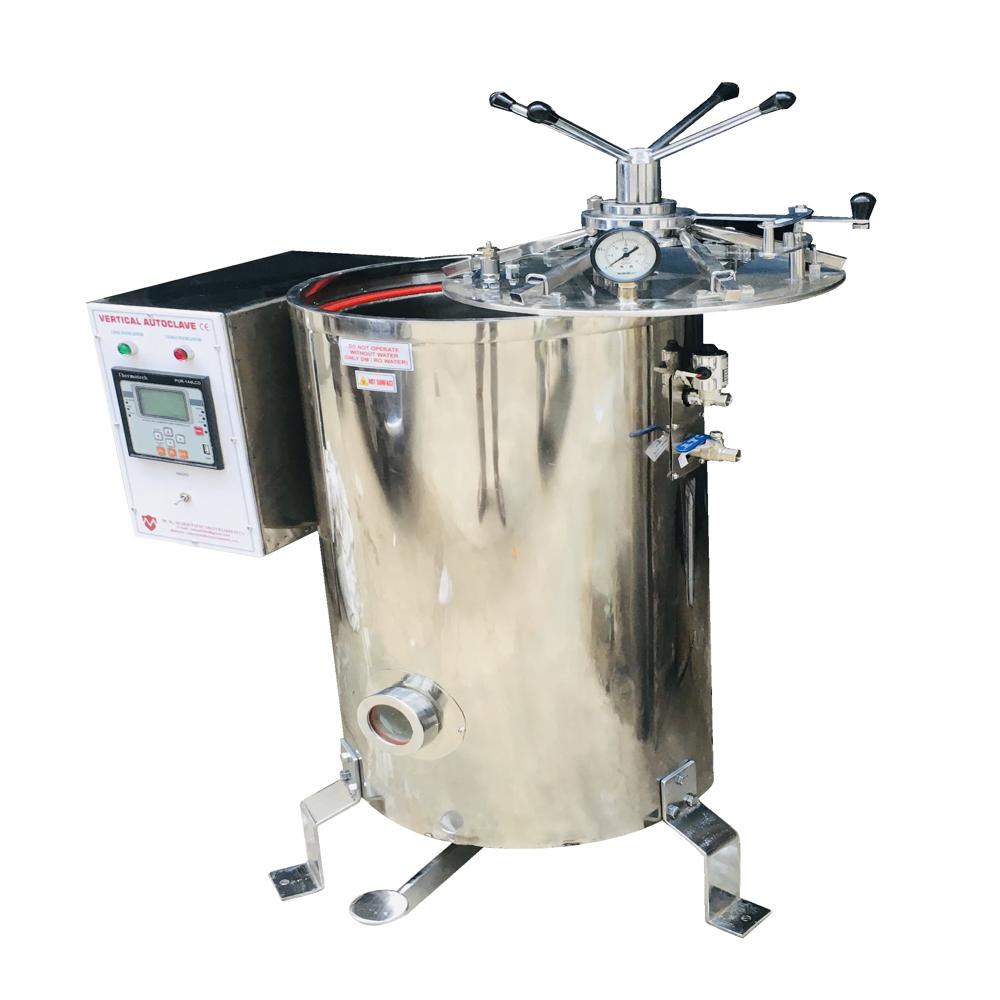

STEAM STERILIZER VERTICAL AUTOCLAVE

STEAM STERILIZER VERTICAL AUTOCLAVE Specification

Type
Vertical Steam Sterilizer Autoclave

Chamber Size
Available in 22, 35, 50, 78, 100, 150 liters (customizable)

Chamber Thickness
2 to 4 mm (stainless steel 304 or 316 grade)

Outer Size
Standard vertical cylindrical design with approximate dimensions dependent on model (commonly 400mm diameter x 600mm height or similar)

Compressed Air
Not required for operation; steam sterilization only

Door Type
Manual top lid with radial locking arms and integrated pressure gauge

Design Pressure
2.1 kg/cm2 (30 psi)

Working Pressure
1.1-1.5 kg/cm2 (15-22 psi)

Design Temperature
135C maximum

Heat Uniform
1C (through effective circulation of steam)

Insulation
Double walled with mineral/glass wool insulation to reduce heat loss

Net Weight
Ranges from 45-90 kg depending on chamber size

Recording Parameters
Digital microprocessor controller with temperature and pressure display, optional printer/USB data export

Spraying Mode
Not applicable; utilizes saturated steam only

Outer Trolley
Not included; designed as a fixed floor-mounted unit

Inner Trolley
Not applicable; features removable stainless steel inner basket/tray

Spraying Piping
Not included; steam direct-injection via built-in piping

Steam
Saturated steam supplied internally (typically via electric heater or external line)

Sterilizing Temperature
121C - 134C

Working Temperature
Up to 134C maximum

Sterilization Time
15-30 minutes (adjustable based on content/load)

Temperature Scope
Ambient to 134C

Piping System
Integrated stainless steel plumbing for steam inlet/outlet and exhaust

Valves
Safety valve, exhaust valve, steam release valve

Power Consumption
Typically 2 kW to 6 kW depending on capacity

Accessories
Perforated inner baskets, lifting handle, drain valve, documentation kit

Control Panel
Microprocessor based digital controller with timer, pressure, temperature indication, and cycle status

Safety Features
Pressure release valve, low-water level cut-off, temperature cut-out switch, door interlock safety mechanism

Power Supply
220-240V AC single phase, 50/60 Hz or 440V three phase, as required

Application
Ideal for laboratory, medical, research, microbiology, and pharmaceutical sterilization needs

Finish
Internal and external surfaces polished to high quality finish

Construction Material
Chamber and lid made from stainless steel (grade 304/316 as per requirement)

Water Reservoir
Provided at bottom of chamber

Heater
Heavy-duty tubular immersion heaters provided with automatic cut-off

Gasket
Silicon or neoprene rubber for steam tight seal

About STEAM STERILIZER VERTICAL AUTOCLAVE

Order the STEAM STERILIZER VERTICAL AUTOCLAVE today and experience astounding performance with optimum safety and efficiency for your sterilization needs. Now available at a price cut, this inestimable sterilizer offers instant savings while delivering robust features: a polished stainless steel chamber and lid (grade 304/316), a microprocessor-controlled panel, and heavy-duty heaters with automatic cut-off. Benefit from top-tier safety with pressure release valves and door interlock mechanisms. Perfect for laboratories, medical, research, and pharmaceutical applications-precision sterilization is now more accessible and reliable than ever.

Advanced Features & User Applications

This STEAM STERILIZER VERTICAL AUTOCLAVE stands out with its digital microprocessor controller, adjustable sterilization cycle, and highly efficient heat uniformity. Notable special features include automatic pressure, temperature, and water level cut-offs, ensuring both effectiveness and safety. It is primarily used by medical professionals, researchers, and laboratory technicians seeking reliable, consistent sterilization. The unit is complemented by perforated baskets, documentation kits, and high-grade insulation, guaranteeing practicality and superior results in high-demand environments.

Global Market Reach & Secure Delivery

Our vertical autoclave attracts a broad export market, spanning research labs, hospitals, and pharmaceutical companies worldwide. Supply ability is robust, with custom chamber sizes available upon quotation to suit diverse needs. Meticulous packaging details ensure goods are transported securely-each unit is exchange-ready and fully protected to prevent transit damage. Clients receive comprehensive support for documentation and transport, guaranteeing a swift, reliable transaction from order to delivery.

FAQ's of STEAM STERILIZER VERTICAL AUTOCLAVE:

Q: How does the steam sterilizer vertical autoclave ensure user safety during operation?

A: The autoclave is equipped with a pressure release valve, low-water level cut-off, temperature cut-out switch, and a door interlock mechanism, all of which work together to provide optimum safety during each sterilization cycle.

Q: What applications is this vertical autoclave best suited for?

A: This sterilizer is ideal for laboratory, medical, research, microbiology, and pharmaceutical sterilization processes, ensuring comprehensive decontamination of instruments and materials.

Q: When can I expect the order to arrive once placed?

A: Delivery timelines are provided upon quotation, with goods typically dispatched promptly based on customization requirements and client location. Secure packaging ensures the autoclave arrives safely and ready for installation.

Q: Where is this autoclave most commonly exported?

A: The vertical autoclave is commonly exported to countries with active research institutions, hospitals, universities, and pharmaceutical manufacturers requiring reliable and efficient sterilization solutions.

Q: What is the process for requesting a custom chamber size?

A: Clients can request a quotation for custom chamber sizes and configurations. Our team will guide you through the options to ensure the unit meets your specific sterilization requirements.
