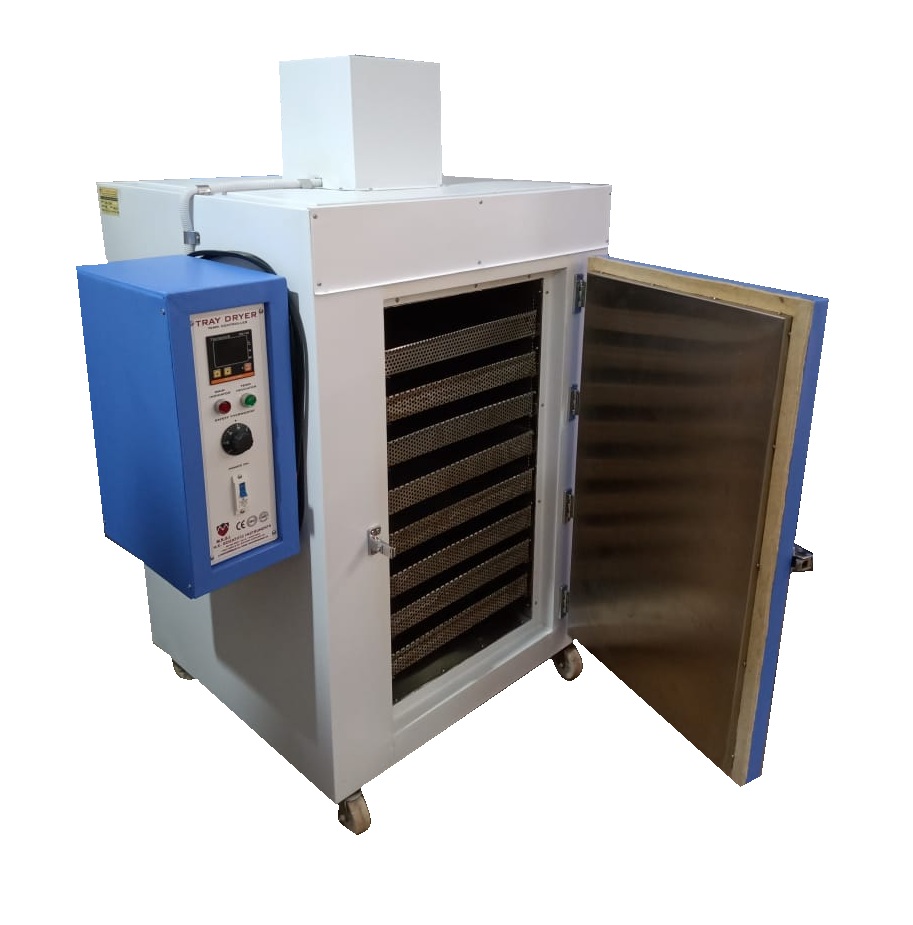

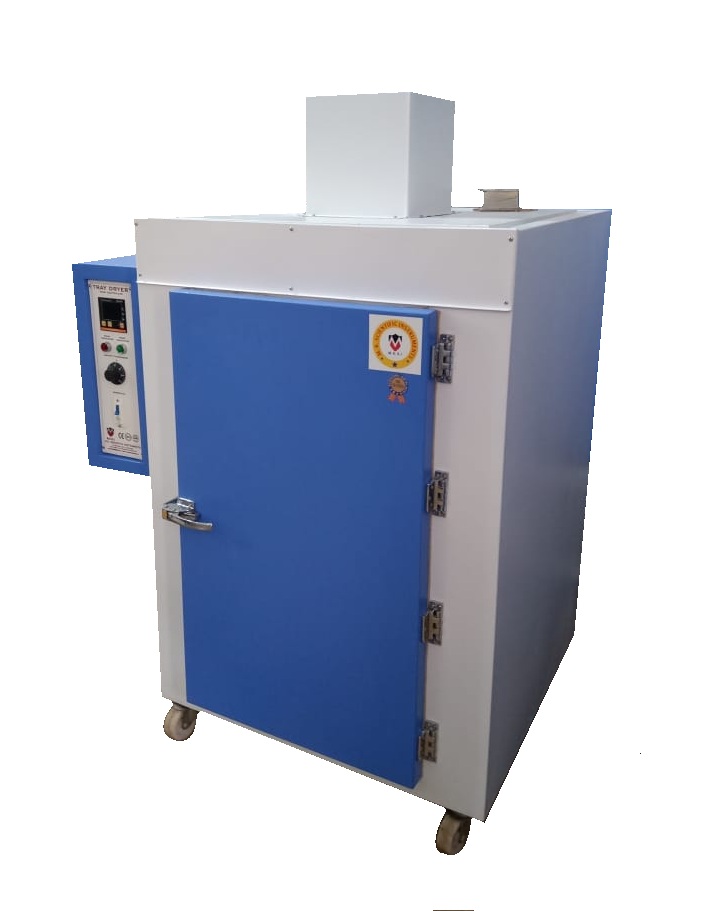

TRAY DRYING OVEN

TRAY DRYING OVEN Specification

Type
Electrical Tray Drying Oven

Chamber Size
Approx. 600mm x 600mm x 600mm (WxDxH)

Chamber Thickness
1.5 mm - 2 mm thick stainless steel inner chamber

Outer Size
Approx. 900mm x 700mm x 900mm (WxDxH)

Compressed Air
Not applicable / Not required

Door Type
Single insulated swing door with gasket and locking arrangement

Design Pressure
Atmospheric

Working Pressure
Atmospheric

Design Temperature
250C

Heat Uniform
2C with air circulation fan

Insulation
Mineral wool or glasswool insulation, 65-100mm thick

Net Weight
Approx. 90-120 kg

Recording Parameters
Optional digital temperature display/recorder

Outer Trolley
Not available in basic model

Inner Trolley
Stainless steel tray support racks inside chamber

Steam
Optional steam heating available (customized)

Sterilizing Temperature
Not designed for sterilization (drying only)

Working Temperature
Ambient to 250C

Sterilization Time
Not designed for sterilization (drying only)

Temperature Scope
Ambient to 250C adjustable

Piping System
NA for standard models

Valves
NA for electric model

Power Consumption
3 kW - 6 kW (depending on size/model)

Air Circulation
Heavy duty blower/fan for uniform air distribution

Safety Features
Over-temperature protection, electrical safety relays

Observation Window
Optional (available on request)

Control System
Digital PID temperature controller with timer

Outer Material
Mild steel powder coated, anti-corrosive finish

Inner Material
Stainless Steel 304 Grade

Mobility
Mounted with castor wheels for easy movement

Power Supply
220V AC, 50/60 Hz, Single phase

Trays Provided
Removable, stainless steel, up to 12 trays depending on model

Heating Element
Nickel chrome wire heaters, sheathed, placed on chamber sides

Application
Pharma, Food, Laboratory, Chemical industries for drying, curing, dehydration

Exhaust Port
Provided on top for moisture outlet

About TRAY DRYING OVEN

Grab the opportunity to own our premier Tray Drying Oven, styled in a sturdy and anti-corrosive mild steel outer body with a praiseworthy stainless steel 304 inner chamber. This popular oven features a digital PID controller for precise temperature settings, heavy-duty blower for lofty uniform air distribution, and removable stainless steel trays (up to 12). With superior safety features, optional observation window, moisture exhaust port, and mobility on castor wheels, this tray dryer is ideal for pharma, food, chemical, and laboratory applications. Enjoy the markdown on a top-tier drying solution designed for efficiency and long operational life.

Versatility and Applications: A Premier Drying Solution

The Tray Drying Oven is exceptionally suitable for the drying, curing, and dehydration of materials in pharmaceutical, food, chemical, and laboratory settings. Its robust and customizable design makes it adaptable for a wide range of application media, including powders, granules, and components. The oven's stainless steel trays, uniform heat distribution, and praiseworthy safety measures ensure efficient and reliable performance across diverse industries, making it an invaluable equipment for processing and research environments.

Policies, Offerings, and Certifications for Export Markets

We offer sample policies tailored to meet client expectations-samples are available upon request to help you assess product suitability prior to full order processing. Our Tray Drying Ovens comply with leading industrial certifications, ensuring stringent quality and safety standards for export markets. Orders are processed promptly with clear documentation, making the export process seamless. Contact us to place your order or request a sample, and experience our praiseworthy commitment to customer satisfaction in every transaction.

FAQ's of TRAY DRYING OVEN:

Q: How does the air circulation system contribute to uniform drying in the TRAY DRYING OVEN?

A: The oven features a heavy-duty blower/fan that ensures even air distribution throughout the chamber, delivering uniform drying for all trays and preventing hotspots.

Q: What safety features does the Tray Drying Oven provide during operation?

A: The oven is equipped with over-temperature protection and electrical safety relays, which safeguard both the equipment and the user from potential hazards.

Q: Where can this Tray Drying Oven be effectively used?

A: This premier oven is ideal for pharmaceutical, food, chemical, and laboratory settings requiring efficient drying, curing, or dehydration of various materials.

Q: What process controls are available to manage drying conditions?

A: A digital PID temperature controller with an integrated timer allows precise programming of temperature and drying cycles, ensuring consistent results.
