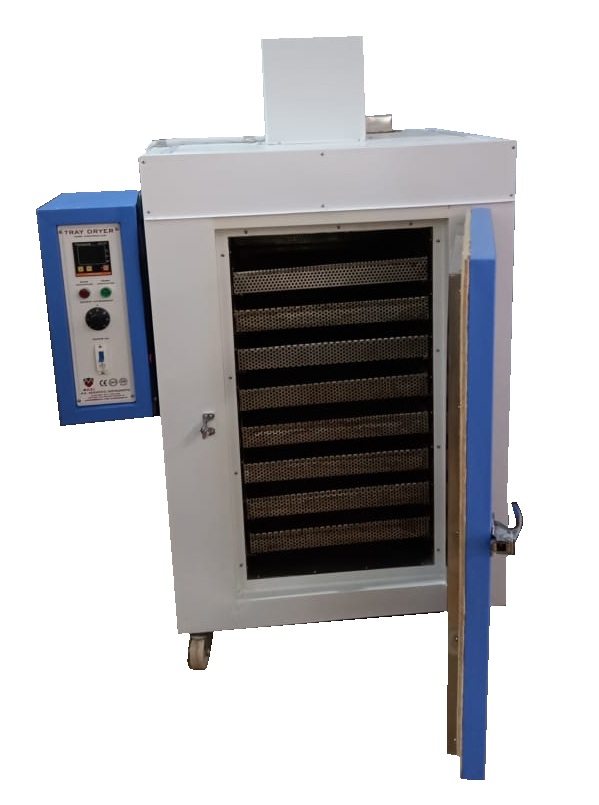

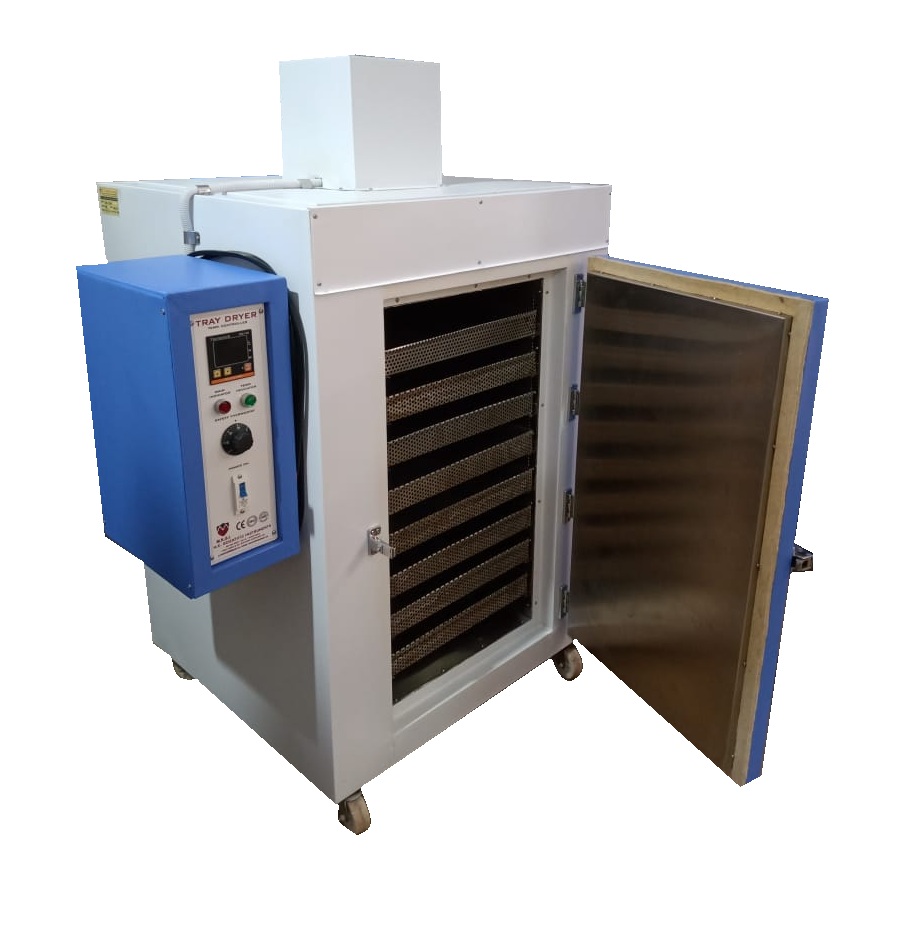

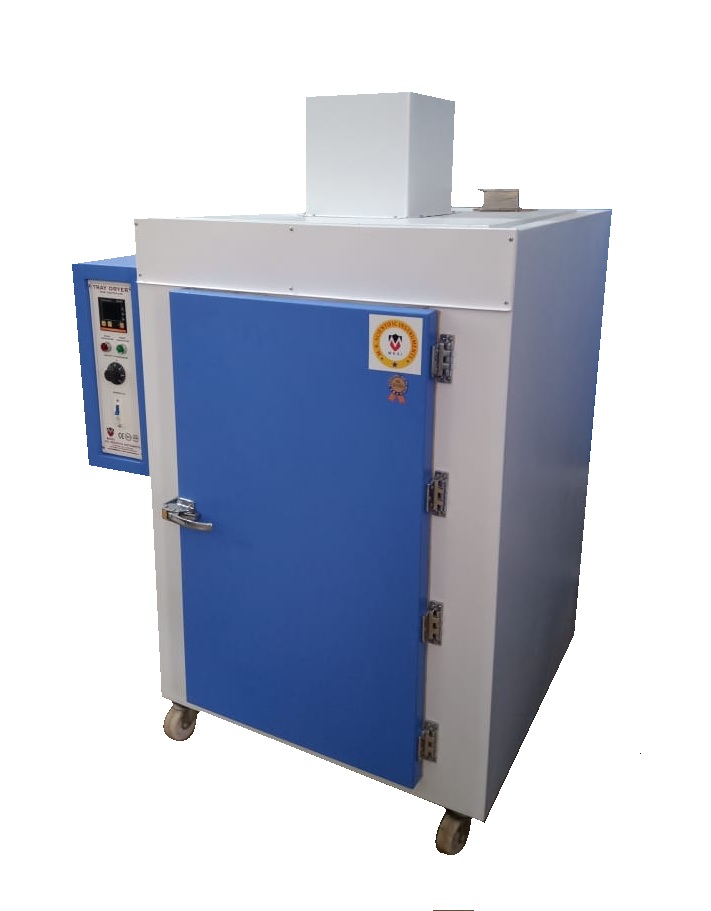

Tray Drying Oven

Tray Drying Oven Specification

Type
Tray Drying Oven

Chamber Size
Approx. 900mm x 600mm x 900mm (WxDxH)

Chamber Thickness
1.5mm-2mm for inner chamber (stainless steel), outer MS powder coated

Outer Size
Approx. 1200mm x 900mm x 1800mm (WxDxH)

Door Type
Single insulated hinged door with heavy-duty handle and locking mechanism

Design Pressure
Atmospheric

Working Pressure
Atmospheric

Design Temperature
Up to 250C

Heat Uniform
2C throughout the chamber

Insulation
High-density glass wool or mineral wool

Net Weight
Approx. 175 kg

Recording Parameters
Digital temperature controller with LED display

Outer Trolley
Optional, available on request

Inner Trolley
Removable, Stainless Steel

Steam
Not directly applicable (Electric heating as standard)

Working Temperature
50C to 250C adjustable

Temperature Scope
Ambient to 250C

Piping System
Electrical wiring for heaters, safety circuits

Valves
Air inlet and exhaust vent valve

Power Consumption
3 kW to 6 kW (Varies with model size)

Voltage
220-240 V AC, 50/60 Hz single phase (other options on request)

Controller Type
Digital PID temperature controller with safety cut-off

Mobility
Mounted on castor wheels for easy movement

Trays Included
12, 24 or as per model (removable, stainless steel)

Noise Level
<65 dB(A)

Insulation Thickness
50 mm

Air Circulation
Motorized blower with uniform hot air distribution

Safety Features
Overtemperature protection, insulated outer surface

Control Panel
Front mounted, digital indication with on/off switch

Heating Type
Electrical heater elements

Material of Construction
Inner: SS 304/316, Outer: Mild steel powder coated

Application
Drying, baking, preheating, sterilizing trays in pharmaceuticals, food, chemicals

Finish
Outer: Epoxy powder coated, Inner: Mirror finish SS

Exhaust System
Adjustable exhaust port for moisture removal

About Tray Drying Oven

Spotlight on this venerable Tray Drying Oven-an exquisite choice for industries seeking phenomenal results. Utilise our limited stock offer and secure your oven equipped with 12, 24, or custom removable stainless steel trays, motorized blower for uniform hot air, and digital PID temperature controller. Crafted with inner SS 304/316 and a mirror finish, the exterior's durable epoxy powder coating enhances longevity. Safety is assured with overtemperature protection and insulated surfaces. Mounted on castor wheels, it's mobile and practical. Enjoy maximum efficiency, featuring adjustable temperature (up to 250C), energy-saving electrical heater elements, and adjustable exhaust for exceptional performance.

Diverse Applications for Commercial Excellence

This Tray Drying Oven is designed for a wide array of application places-pharmaceutical labs, food processing, chemical manufacturing, and research facilities. It is indispensable for drying, baking, preheating, or sterilizing items efficiently. The adjustable temperature scope and atmospheric pressure operation make it ideal for sensitive commercial uses, delivering consistent results. With removable trays and uniform heat distribution, users achieve outstanding quality for each batch, maintaining integrity of pharmaceuticals, food ingredients, and chemical compounds with exceptional ease.

Sample Availability, Certifications, and Hassle-Free Transactions

We offer sample availability and certified quality for your absolute peace of mind. At the lowest price, benefit from quick dispatch and streamlined shipment processes, ensuring timely arrival at your location. Payment terms are flexible to suit your needs. By choosing our tray drying oven, you access a reputable product backed by certification, precise documentation, and phenomenal after-sales support. Utilise this offer and experience seamless procurement backed by reliability and trustworthiness.

FAQ's of Tray Drying Oven:

Q: How does the tray drying oven maintain uniform temperature throughout the chamber?

A: The oven utilises a motorized blower for uniform hot air circulation, paired with electrical heater elements and a digital PID controller, ensuring a consistent heat uniformity of 2C throughout the chamber.

Q: What safety features are integrated into this tray drying oven?

A: This oven is equipped with overtemperature protection, a digital safety cut-off, and an insulated outer surface, providing reliable operation and preventing accidental overheating.

Q: Where can this tray drying oven be effectively used?

A: It is ideal for laboratory, pharmaceutical, food processing, and chemical industry environments, perfectly suited for drying, preheating, baking, and sterilizing trays.

Q: What payment options and delivery solutions are available for this product?

A: We provide flexible payment terms, and shipment arrangements are tailored to ensure quick dispatch and secure delivery at the lowest possible price.

Q: How can users benefit from the removable stainless steel trays and adjustable exhaust system?

A: Removable trays allow for convenient loading and cleaning, while the adjustable exhaust system effectively removes moisture, ensuring optimal drying and baking performance each cycle.
